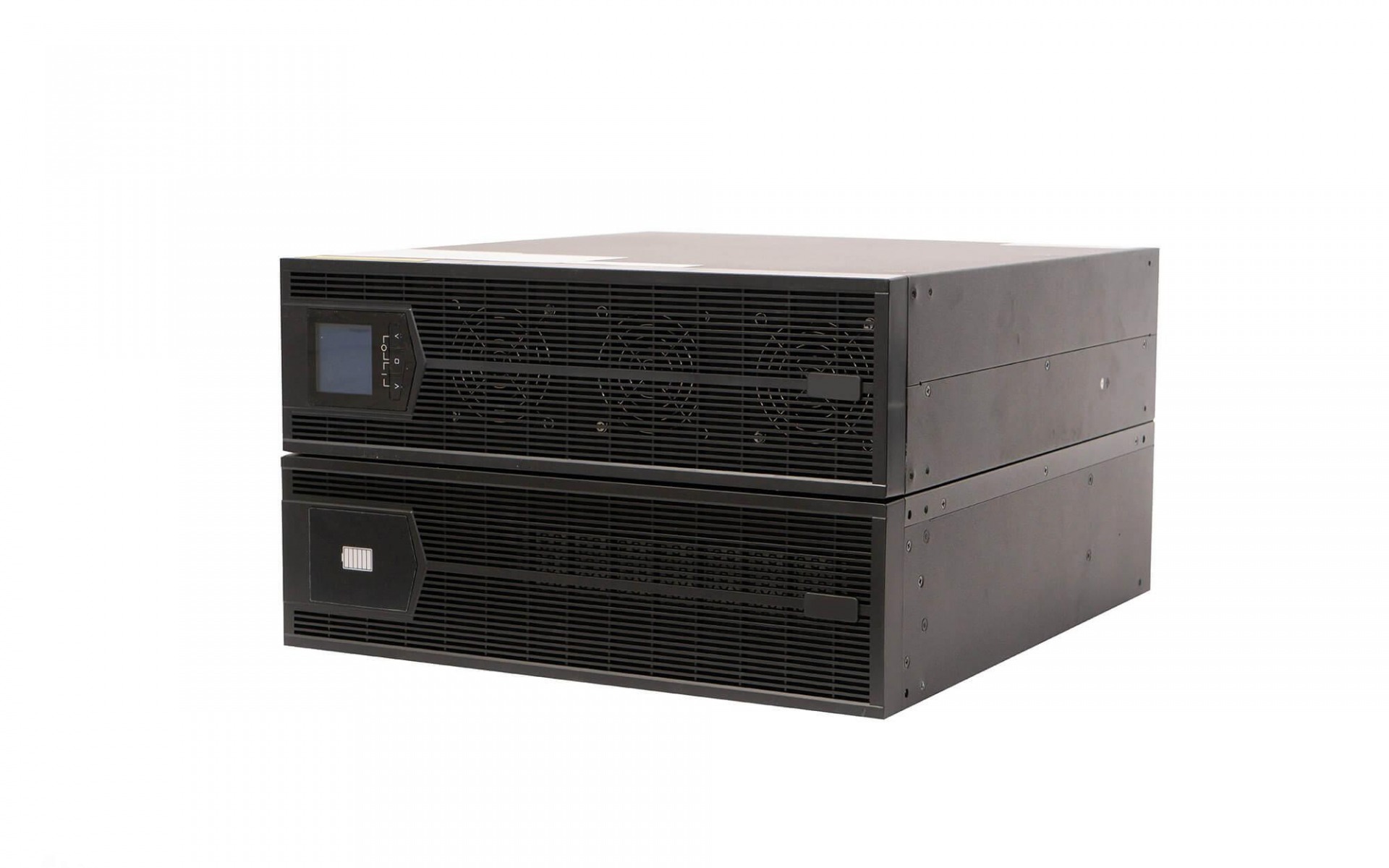

IST9 box

IST9
IST9
IST9
IST9
IST9
IST9
IST9 box
  •          Online Double Conversion with 3-level IGBT technology

  • Tower o rack
  •          Up to 4 units connectable in parallel

  •          Flexible on-site configuration with input/output 1:1, 3:1, 3:3

  • Power factor in entrata e uscita > 0.99
  • Output power factor up to 1
  • All-digital control technology with low THDi: < 3 %
  •           High efficiency, up to 96 %

  •           It has communication ports RS485 + EPO

  • ECO function
  •           Compact design and space-saving

UPSs of the series IST9 are available in powers from 10kVA to 20kVA.

IST9 Uninterruptible Power Supplies, using the most advanced technologies in the sector, are able to offer the best solution to the global market for all stable and reliable supply requests for critical and sensitive loads.

Due to their extreme flexibility, the Uninterruptible Power Supply can be configured comfortably through the display directly on site. The number of batteries and the charging current are also adjustable.

The refined and functional design, silence, weight and small size make this UPS an ideal choice for security in all offices and in environments where users are at risk.

IST9 has been designed to be the most flexible and space-saver UPS systems in the sector. It is possible to change entry and exit settings at your own convenience: Single phase Input/Output — Three phase Input/Output.

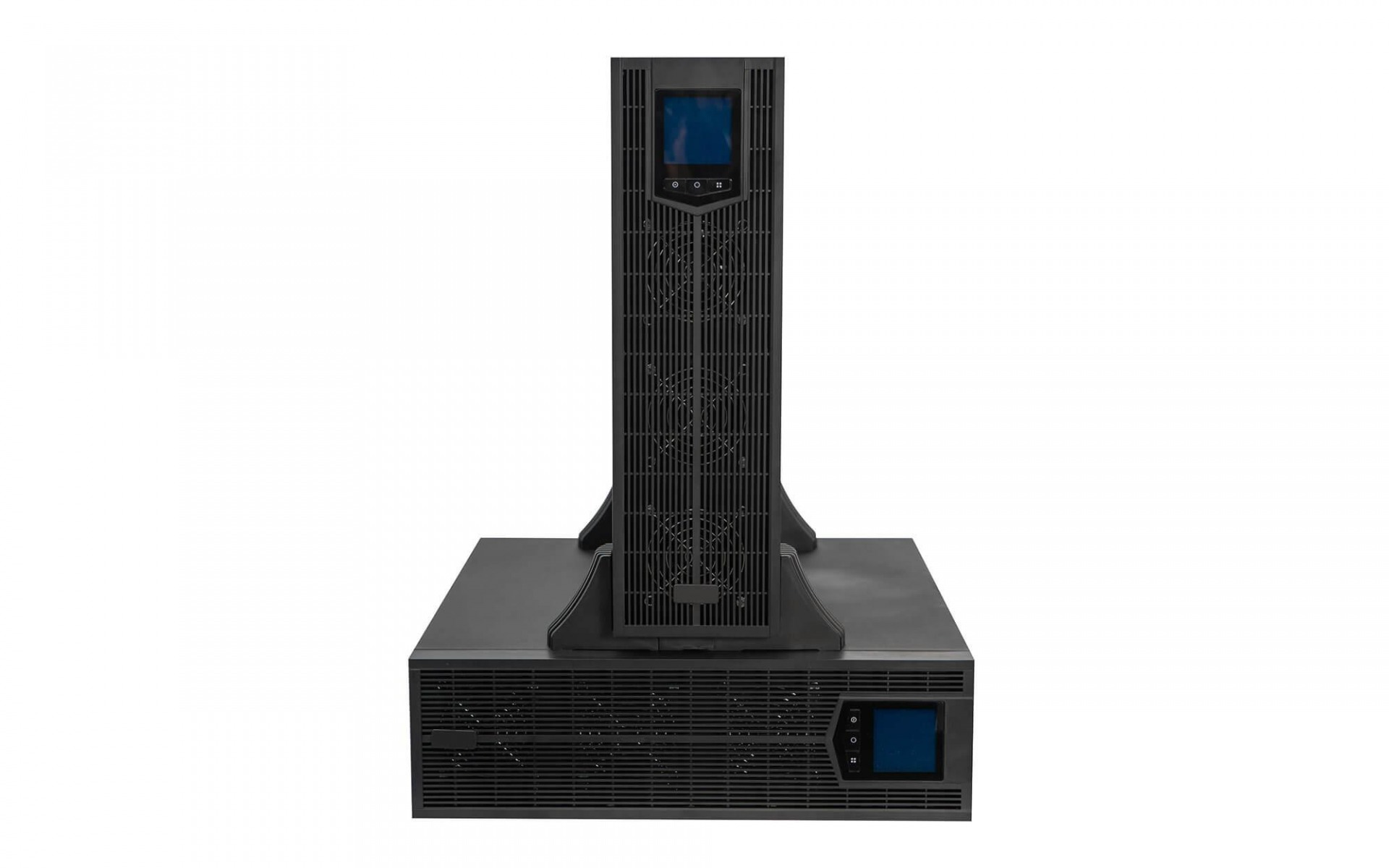

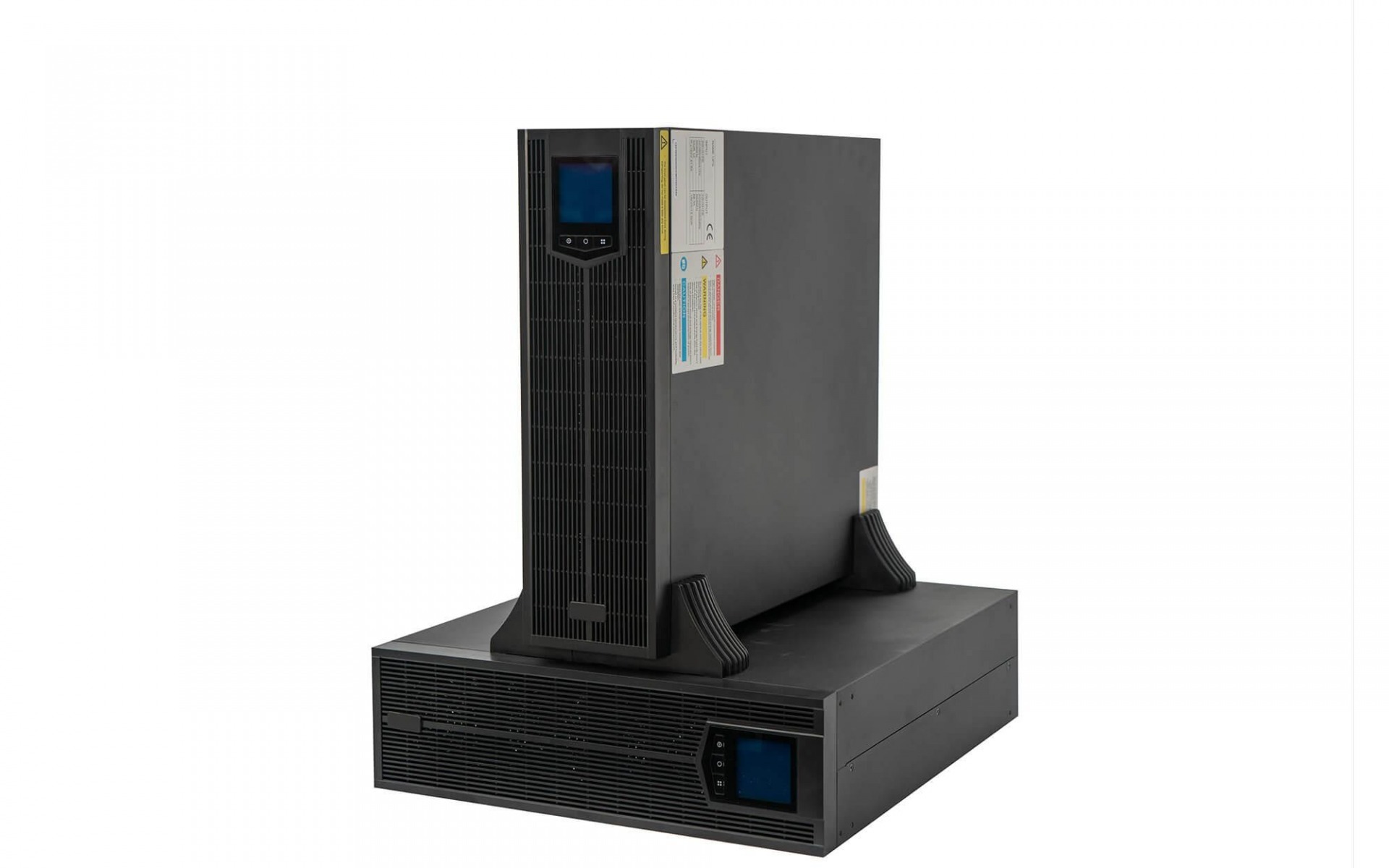

The IST9 range is compatible with both Rack and Tower installations for greater versatility in the installation.



Download PDF

Data sheet

MODELS IST9100 IST9150 IST9200
INPUT
VOLTAGE (VAC) 80-280 (L-N) or 138 - 485 (L-L)
FREQUENCY (HZ) 40-70
POWER FACTOR
≥0.99
THD <3%
OUTPUT
CAPACITY (kVA) 10 15 20
MAX. AC/AC EFFICIENCY 96.00%
POWER FACTOR 1.0
VOLTAGE (VAC) 220/230/240±1% (L-N) or 380/400/415±1% (L-L) (settable)
FREQUENCY (HZ) 50/60±0.1
THD THD <2% (linear load); THD <4% (no linear load)
TRANSFER TIME (MS)
0
ECO MODE
Yes
OVERLOAD
115%~130% load for 15mins, 130%~150% load for 1min, above 150% load for  200ms
BATTERIES
VOLTAGE (VDC) ±192 (±144~±240 adjustable)
CHARGING CURRENT (A) 4 (1-10 settable)
OTHERS
COMMUNICATION INTERFACE RS485+EPO (RS232+Dry contact, SNMP are optional in slot)
DISPLAY LCD
ALARM Low battery,  abnormal AC input, UPS failure, etc.
PROTECTION
Low battery, overload, short-circuit and over temperature, etc..
NOISE (DB) <55
TEMPERATURE (°C) -5~40
RELATIVE HUMIDITY
0~95%
DIMENSIONS (W×D×H) MM
UPS
Distribution Box
438x500x130(3U)
438x500x130(3U)
WEIGHT (KG)
UPS
Distribution Box
20
8
